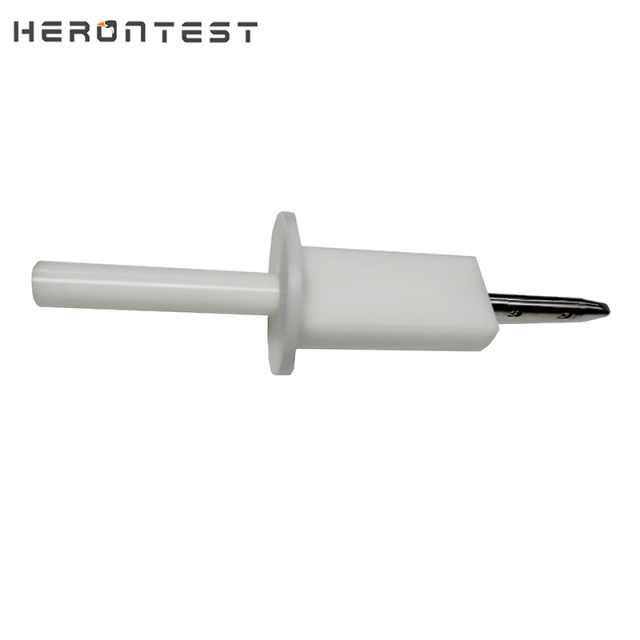

IEC61032 IEC60529 figure2 IP2X 12mm Jointed Test Finger Probe B

IEC61032/IEC60529 figure2 Jointed Finger Probe B

Product Introduction:

It meets the requirements of IEC60065, IEC 60335-1, IEC 60529, IEC61032 Figure 2 Test Tool B, IEC950 Figure 2A, IEC60884, Test Tool B, UL507, EN60529 Figure 1, UL1278 Figure 8.4 and other standards. Inspection for protection against finger touch or inspection against electric shock, specimen range: easily accessible live parts or mechanical parts of the enclosure.

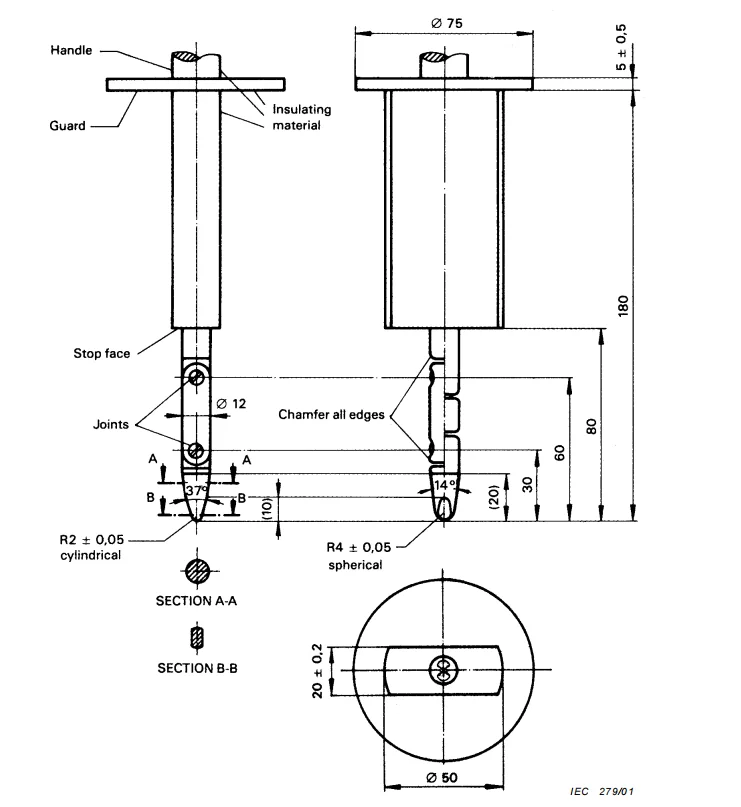

Specification:

1. Diameter of curved finger: 12 mm

2. Bending finger length: 80mm (total length of three sections)

3. Diameter of baffle: 50mm

4. Baffle length: 100mm

5. Reference standard: IEC60065, IEC 60335-1, IEC 60529, IEC60884-1, IEC60950, IEC61032, IEC69745-1
